The Steps To Remove TP
1. Prepare Needed Tools : electric iron, micro-fiber wiper, absolute alcohol, blades, tin-wire, finger tip ;
2. Put on finger tip then make TP’s FPC separate from module’s FPC by electric iron
3. Find a cleaned table top and wipe the surface by micro-fiber wiper with absolute alcohol

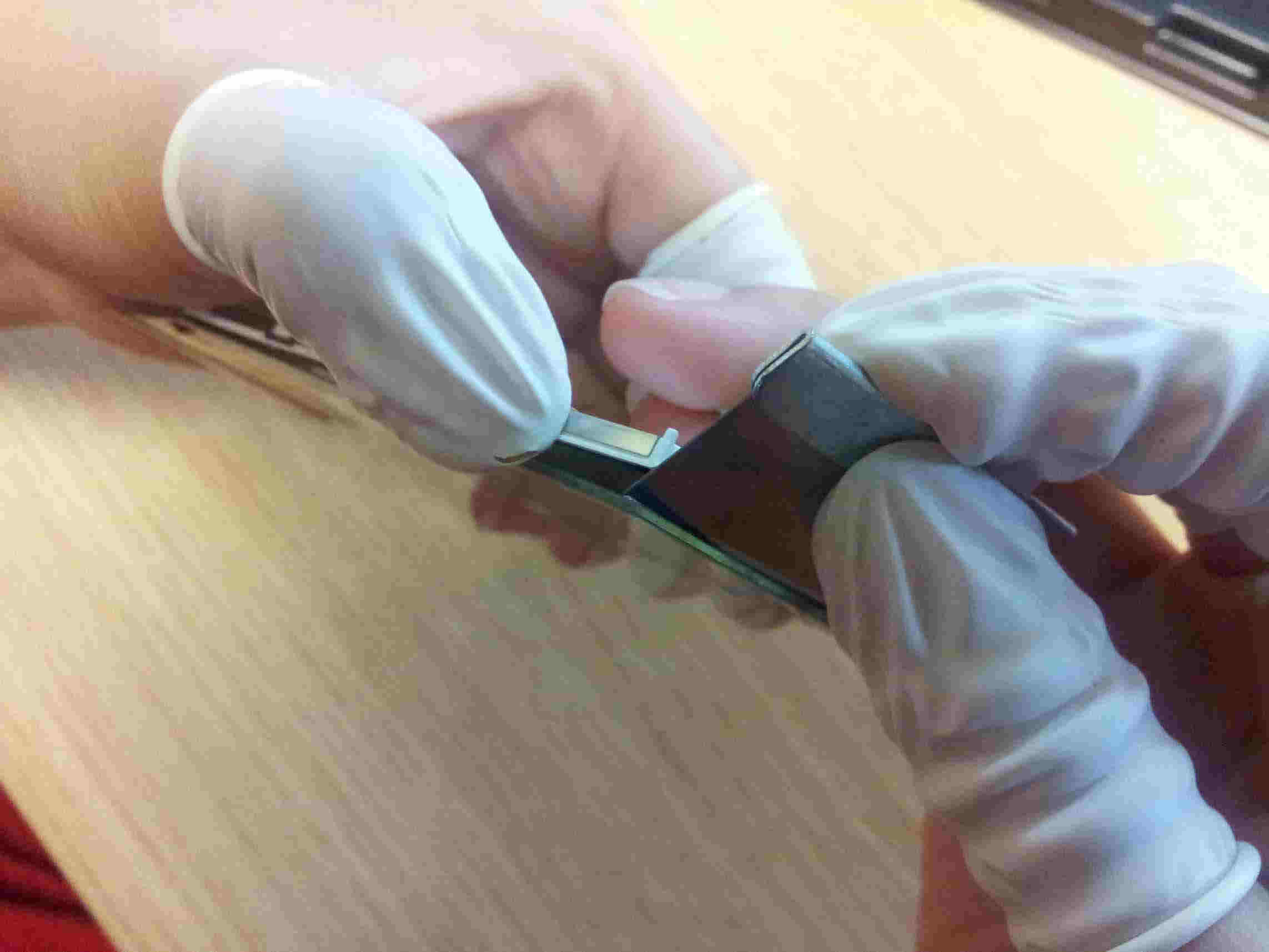

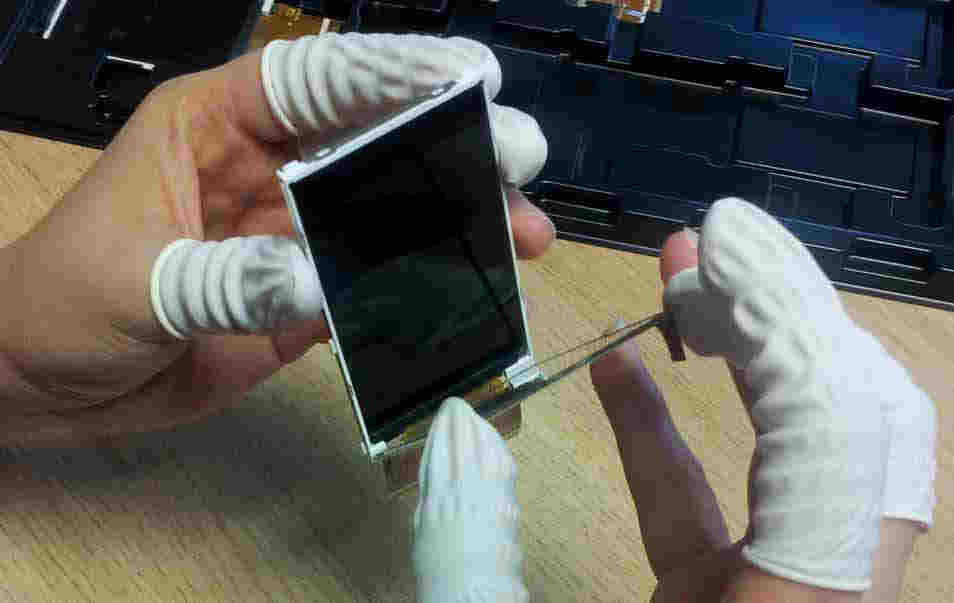

4. Take a module, Gently push the knife point into the vertex between TP and module. Shown in figure

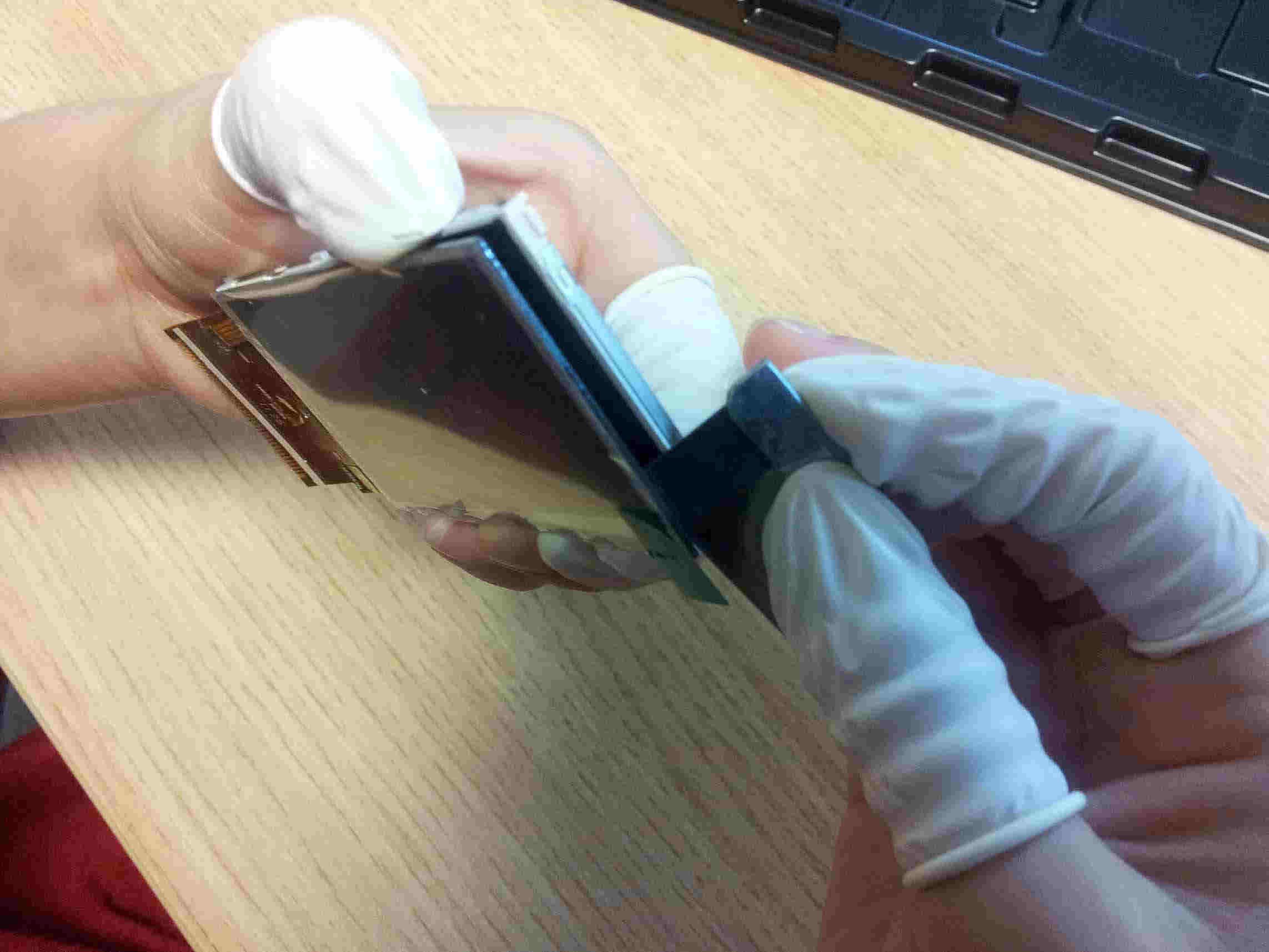

5. Be sure the blade edge fronts on TP side. Don’t front on polarizer side to avoid scratch module. Shown in figure

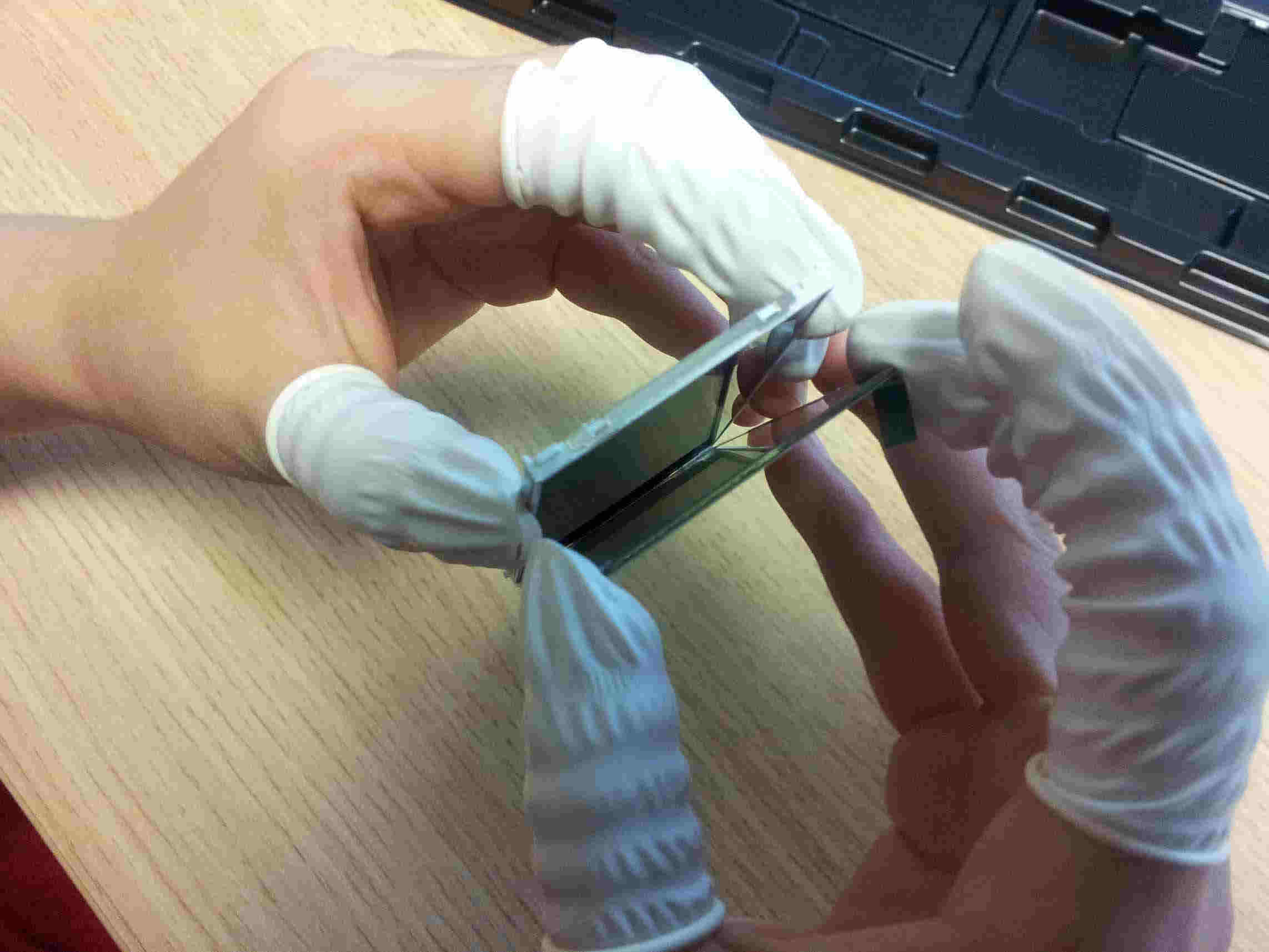

6. Pry open TP a crack then softly slip space form side to side. Shown in figure

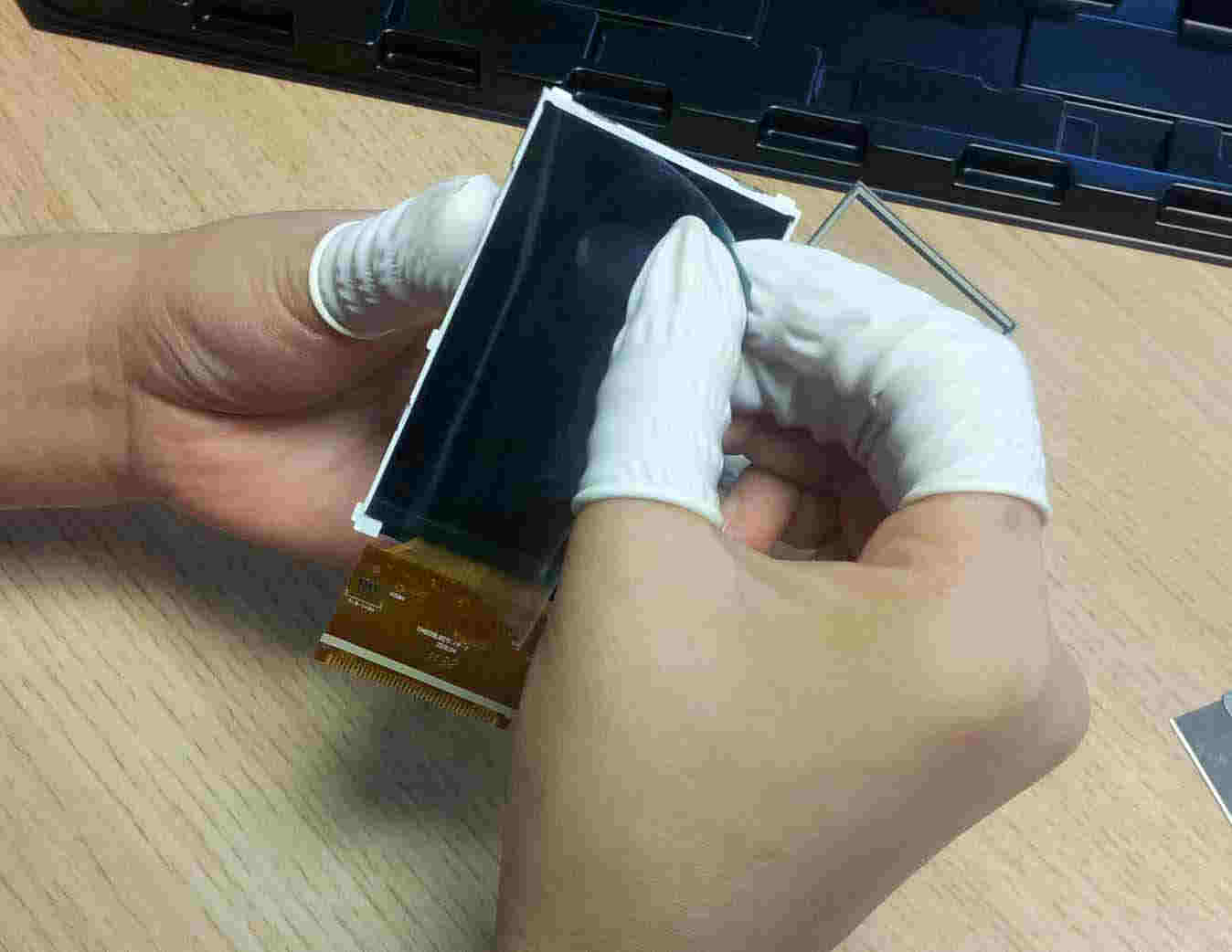

7. Put down the blade, Hold the pried TP two edges and peel off it. Then TP was taken off. Shown in figure

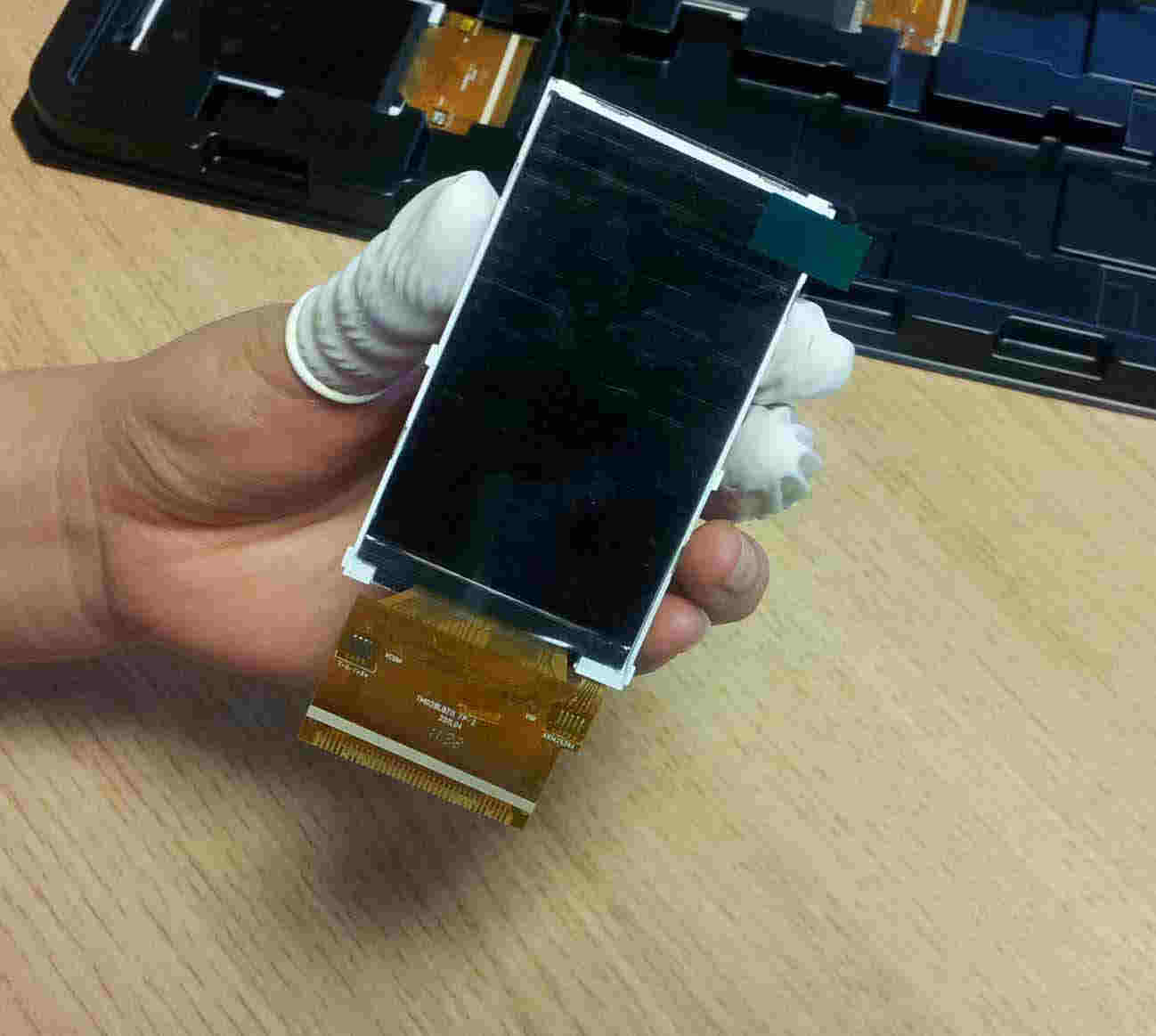

8. After take off TP, Check TFT if there is any dust or dirty mark. Clean with micro-fiber wiper dipping with a few alcohol. Finally put the TP protective film on TFT surface. Shown in figure
